M12 8 Pole Female circular Connector

Part Number:

M12 8 Pole Female circular Connector, M12 Connector 8 Pin Female

FLECONN can provide high-quality m12 8-pole female connectors, IP67 waterproof plastic cover can be installed on site with A code.

General Description:
Connector series: M12. Gender: Female. Code: A code. Contact: 8-pole. Cable outlet: 4-6 mm. Waterproof rating: IP67

Click here to enlarge

Product Description

M12 8 Pin Female circular Connector

FLECONN can supply high quality m12 8 pin female connector with a-coded field installable IP67 waterproof plastic cover for industry ethernet, sensor and automation systems.

M12 8-pin female Connector n the company of FLECONN China

1. The product Features for m12 8 pin female connector

Connector Series: M12.

Gender: Female.

Coding: A-Coded.

Contacts: 8-pin.

Waterproof Rating: IP67 plastic cover

2. The Mechanical and Electrical Characters for m12 8-pin female connector

Connector locking system:screw Termination

crewing Wire gauge (mm)0.75 mm²

Wire gauge (AWG)18

Cable outlet 4 - 6 mm

Degree of protectionIP67

Mechanical operation> 100 mating cycles

Upper temperature85 °C Lower temperature-40 °C

Rated voltage250 V

Rated impulse voltage2500 V

Pollution degree

Overvoltage categoryII

Material groupIII

Rated current (40°C)4 A

Volume resistivity≤ 3 mΩ (Gold)

Material of contactCuZn (Brass)

Contact platingCuSnZn (Optaloy)

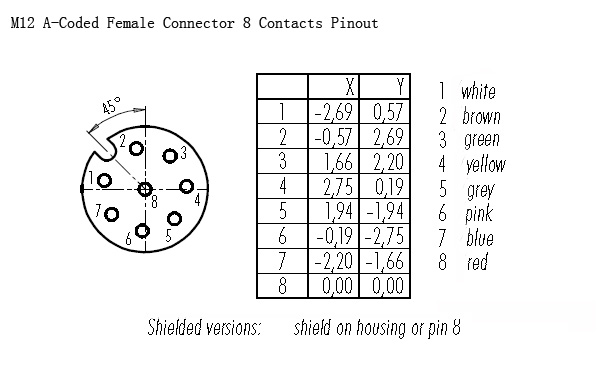

3.  m12 a-coded 8 pin female connector pinout

M12 A-Coded Female Connector 8 Contacts Pinout.jpg

4. Other connectors similar with m12 connector 8 pin female

M12 Connectors in the company of FLECONN China
