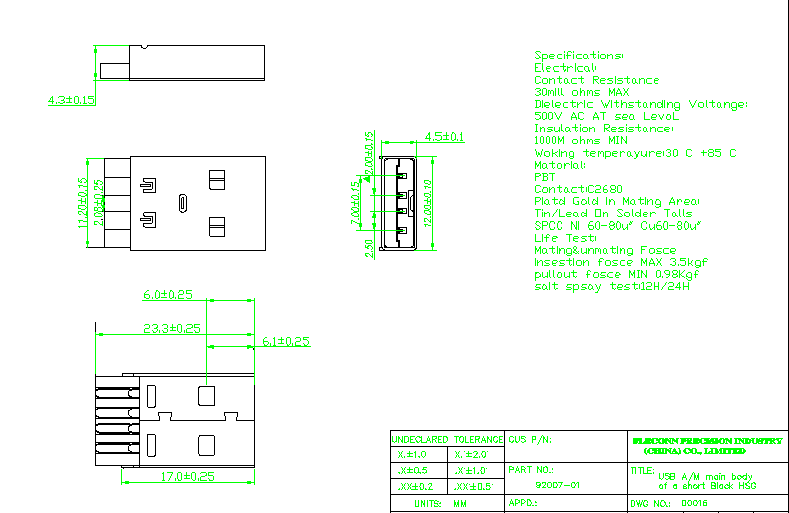

USB A/M main body

Part Number:
92007-01


General Description:
Features:
  • Contact Resistance:30 m ohms MAX.
  • Dielectric Withstanding Voltange:500V AC AT sea LevoL.
  • Insulation Resistance:1000M ohms MIN.


I-PEX
Click here to enlarge



Product Description

Specifications:
Electrical:
Contact Resistance
30mill ohms MAX
Dielectric Withstanding Voltange:
500V AC AT sea LevoL
Insulation Resistance:
1000M ohms MIN
Woking temperayure:30 C +85 C
Matorial:
PBT
Contact:C2680
Piatd Gold in Mating Area:
