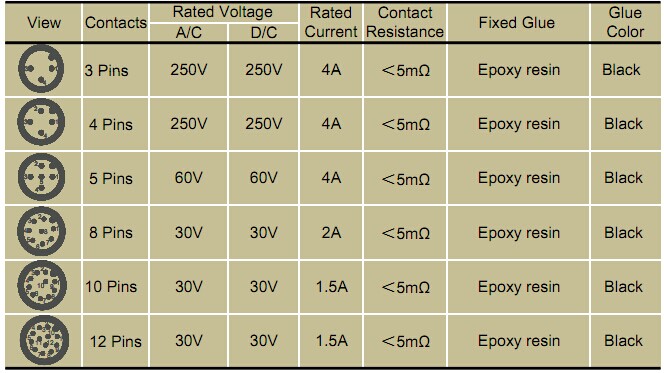

M12 Male waterproof sensor connectors A-Coding PCB Panel mount type 3 4 5 8 10 12 pins

Part Number:
M12 Connector-XX


General Description:
Features:
  • Connector Series:M12.
  • Connector Design: Male PG9 .
  • Connector Style: A Coding .
  • Assembly Style: Rear mount


I-PEX
Click here to enlarge



Product Description

*General Information
Standard:IEC 61076-2-104                                   Insulation Resistance:>100M Ohm
Connectors: Body: PA66+GF                               shielding: Available
Contacts:Phosphorus Brass with gold plated    Waterproor Rating:IP67/IP68
Connector locking System: Nut-locking
Connector Nut: Brass with nickel plated
Waterproof Ring:Fluorine rubber ring
