    M8 4 Pin Female Connector Cable RJ45 High-speed Ethernet cable

    Hirose DF11 Series Connector Wire Harness, 2mm Pitch Double-Row DF11-14DS-2C 14 Pin Socket

    Part Number:
    DF11-14DS-2C

    Call for Pricing

    Keywords:
    DF11-14DS-2C，Hirose DF11 Series Connector Wire Harness

    Description:
    FLECONN can assemble HRS DF11-14DS-2C 14 pin connector wire harness for device's power and signal transmission.

    General Description:
    Connector Series: Hirose DF11 Series; Circuit Number: 14 circuits; Wire Gauge: UL1007 24AWG; Gender: Female / Receptacle, Product Name: HRS Connector Wire Harness


    I-PEX
    Click here to enlarge



    Product Description



    Hirose DF11 Series Connector Wire Harness, 2mm Pitch Double-Row DF11-14DS-2C 14 Pin Socket

    Product Description:

     FLECONN can assemble hirose df11 series connector wire harness with 2mm pitch double-row df11-14ds-2c 14 pin socket for device's power and signal transmission.

    Hirose DF11 Series 2mm Double-Row Connector Wire Harness

    I. Features:

    2mm Double-Row Connector (Product Compliant to UL/CSA Standard)

    1. Space-saving on Board Realized

    2. Broad Variation

    3. Applicable Wire Covers Wide Range

    4. The ID Type Connector Achieves Connection Work


    II. Housing Series

    1.1  Hirose DF11 Series 2.0mm pitch wire-to-board dual row socket housing

    CircuitsHousing
    4DF11-04DS-2C
    6DF11-06DS-2C
    8DF11-08DS-2C
    10DF11-10DS-2C
    12DF11-12DS-2C
    14DF11-14DS-2C
    16DF11-16DS-2C
    18DF11-18DS-2C
    20DF11-20DS-2C
    22DF11-22DS-2C
    24DF11-24DS-2C
    26DF11-26DS-2C
    28DF11-28DS-2C
    30DF11-30DS-2C
    32DF11-32DS-2C

    III. Crimp Terminal

    Crimp Terminal: DF11-2428SCF

    Applicable Wire: UL 1007 24-28AWG

    Insulation OD: 0.9-1.45mm


    IV. Product Specifications

       1. Electrical Performance:
       Rating voltage: 250V AC DC
       Rating Current: 0.5-2A (18AWG)

       2. Temperature
       operating temperature, fixed installation: -40 to 80c deg.
       Service: Wiring Harness OEM
       Certificate: CE, RoHS

    V. Product Pictures

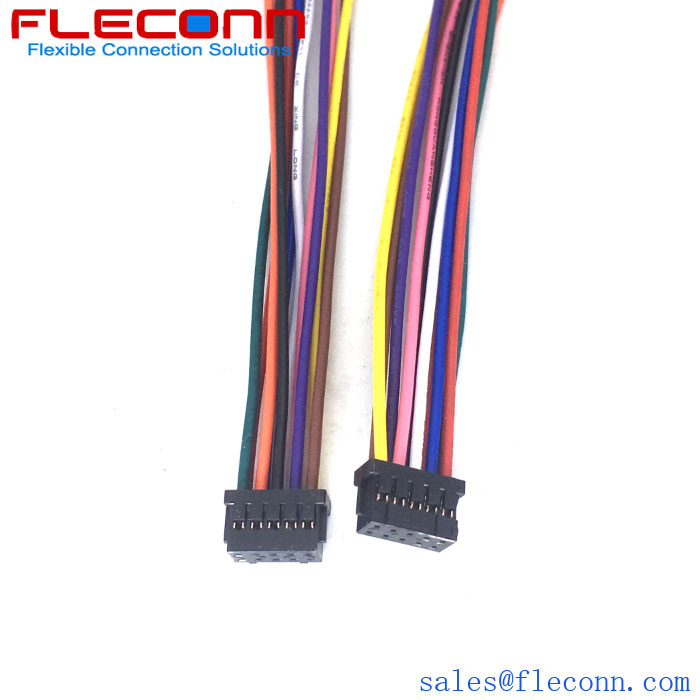

    Hirose DF11 Series Connector Wire Harness, 2mm Pitch Double-Row DF11-14DS-2C 14 Pin Socket

    Hirose DF11 Series Connector Wire Harness, 2mm Pitch Double-Row DF11-14DS-2C 14 Pin Socket.jpg
