    M8 4 Pos Front lock Female Connector M12 4 Pos Male Circular Connector

    Molex Microfit Cable Assembly, 43025-0800 Connector

    Part Number:
    MX-08P-3.0PH-C01

    Call for Pricing

    Keywords:
    Molex Microfit Cable Assembly, 43025-0800 Connector

    Description:
    FLECONN can custom molex microfit cable assembly with 43025-0800 8 pin / circuit connector.

    General Description:
    Connector Series: Molex Microfit 3.0 Connector; Circuit Number: 8 Pin; Wire Gauge: UL2464 24AWG*8C; Product Name: Molex Microfit Cable Assembly


    I-PEX
    Click here to enlarge



    Product Description



    Molex Microfit Cable Assembly, 43025-0800 Connector

    FLECONN can custom molex microfit cable assembly with 43025-0800 8 pin / circuit connector.


    I. Housing Series

    1.1  Molex 43025 Series 3.0mm pitch wire-to-wire and wire-to-board receptacle housing

    CircuitsHousing
    843025-0800

    II. Crimp Terminal

    Crimp Terminal: 43030-0001

    Applicable Wire: UL2464 24AWG*8C High Flexible Cable


    III. Product Specifications

       1. Electrical Performance:
       Rating voltage: 600V AC
       Rating Current: 1.5A (24AWG)

       2. Temperature
       operating temperature, fixed installation: -25 to 80c deg.
       Service: Wiring Harness OEM
       Certificate: CE, RoHS

    IV. Product Pictures

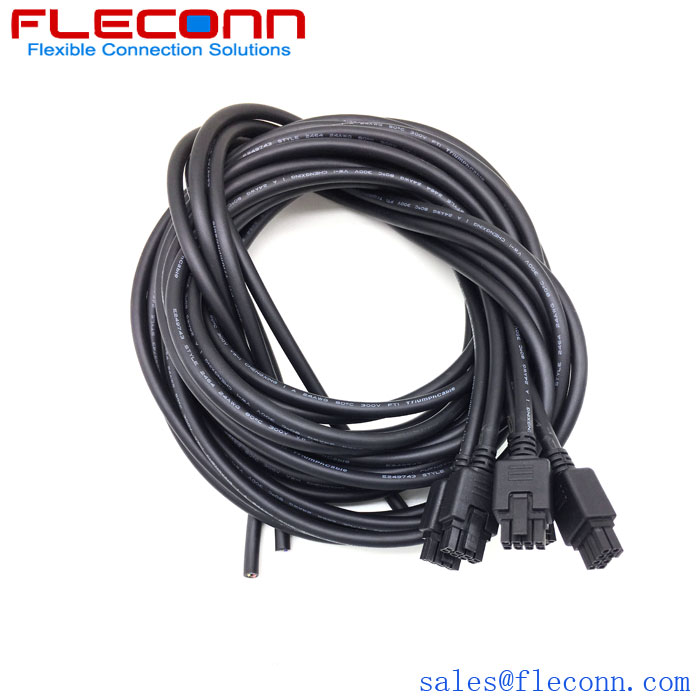

    Molex Microfit 3.0 overmolded Cable Assembly, 43025-0800 Connector

    Molex Microfit 3.0 overmolded Cable Assembly, 43025-1200 Connector
