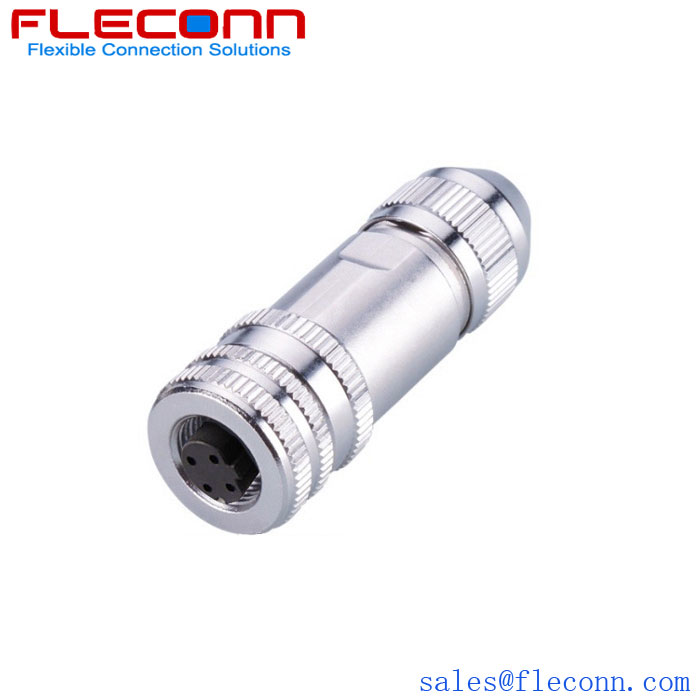

M12 4 Pin D-Coded Female Connector

Part Number:
M12-D-F-FW-RA-MS-4P-PG7


Keywords:
M12 4 Pin D-Coded Female Connector

Description:
FLECONN can supply m12 4 pin D-Coded female connector with a-coded socket and shielded metal shell.

General Description:
Connector Series: M12. Gender: Female. Coding: D-Coded. Contacts: 4 pin. Cable outlet: 4-6 mm. Shielding: Metal Shell Shielding


I-PEX
Click here to enlarge



Product Description

M12 4 Pin D-Coded Female Connector

FLECONN can supply m12 4 pin female connector with a-coded socket and shielded metal shell.



M12 5 Pin Female Connector in the company of FLECONN China


1. The product Features for m12 4 pin female connector

Connector Series: M12.

Gender: Female.

Coding: D-Coded.

Contacts: 4 pin.

Shieding: Metal shell shielding

2. The Mechanical and Electrical Characters for m12 4 pin female connector

Connector locking system:screw thread

crewing Wire gauge (mm)0.75 mm²

Wire gauge (AWG)18

Cable outlet 4 - 6 mm

Degree of protectionIP67

Mechanical operation> 100 mating cycles

Upper temperature85 °C Lower temperature-40 °C

Rated voltage250 V

Rated impulse voltage2500 V

Pollution degree

Overvoltage categoryII

Material groupIII

Rated current (40°C)4 A

Volume resistivity≤ 3 mΩ (Gold)

Material of contactCuZn (Brass)

Contact platingCuSnZn (Optaloy)


4. Other connectors similar with the shielded m12 4 pin female connector.
