M12 5 Pole Connector

Part Number:
M12-A-M/F-FW-ST-PS-05P-SC-PG7/PG9


Keywords:
M12 5 Pole Connector, M12 5 Pole Male Female Cable Connector

Description:
FLECONN can supply m12 connector 5 pole male and female a-coded assembly plastic cover with IP67 protection class for CAN-Bus connection.

General Description:
Connector Series: M12. Gender: Male and Female. Coding: A-Coded. Contacts: 5 poles. Cable outlet: 4-6 mm. Waterproof Rating: IP67


I-PEX
Click here to enlarge



Product Description

M12 5 Pole Connectors

FLECONN can supply m12 5 Pole Connector male and female a-coded assembly plastic cover with IP67 protection class for CAN-Bus connection.



M12 5 pin Connectorin the company of FLECONN China


1. The product Features for m12 5 Pole Connectors.

Connector Series: M12.

Gender: Male and Female available.

Coding: A-Coded.

Contacts: 5 poles.

2. The Mechanical and Electrical Characters for m12 5 poles connector

Connector locking system:screw Termination

crewing Wire gauge (mm)0.75 mm²

Wire gauge (AWG)18

Cable outlet 4 - 6 mm

Degree of protectionIP67

Mechanical operation> 100 mating cycles

Upper temperature85 °C Lower temperature-40 °C

Rated voltage250 V

Rated impulse voltage2500 V

Pollution degree

Overvoltage categoryII

Material groupIII

Rated current (40°C)4 A

Volume resistivity≤ 3 mΩ (Gold)

Material of contactCuZn (Brass)

Contact platingCuSnZn (Optaloy)

3.  m12 a-coded 5 positions male and female connector pinout

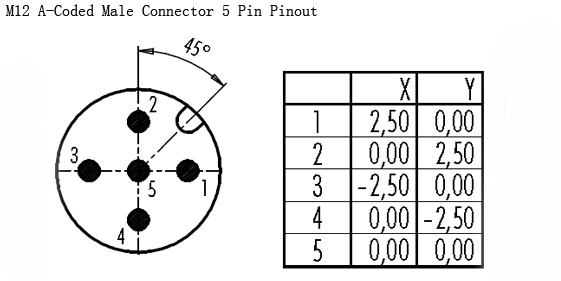

M12 A-Coded Male Connector 5 Pin Pinout.jpg

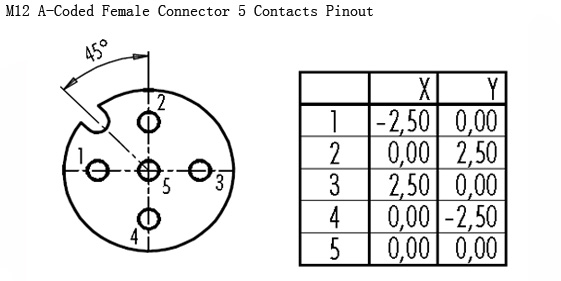

M12 A-Coded Female Connector 5 Contacts Pinout.jpg

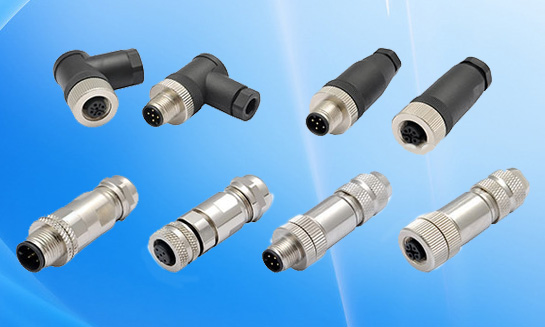

4. Other connectors similar with m12 connector 5 pins

M12 Connectors in the company of FLECONN China
